The flexible switch that keeps everything flowing

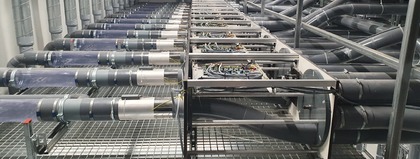

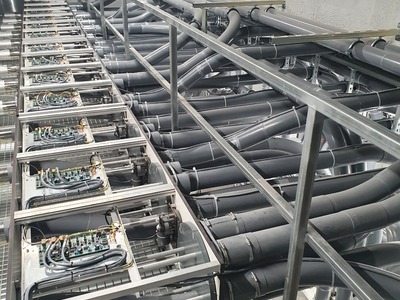

Diverters are essential components in any pneumatic tube system. They allow carriers to be redirected quickly, safely and without air leakage between different routes or building levels. Using a precision rotation mechanism with soft air cylinders, each switch transitions smoothly: minimizing carrier stress and maximizing uptime.The housing is made from extruded aluminum and features rubber seals for a perfectly airtight closure. The diverters are available for Ø110 and Ø160 systems, in 3-way or 6-way configurations, and can be installed at any angle needed. Standard features include return detection and sensor-controlled switching. Seamless routing. Maximum system availability.
Key features
•
High switching speed: up to 12 moves per minute.
•
Airtight design: low resistance, energy-saving operation.
•
Flexible installation: suitable for vertical and horizontal trajectories.
•
Low maintenance: no lubrication needed, easy access via service hatch.
•
Smart integration: supports logic control and route prioritization.
